Build OpenCV

  1. Download OpenCV and Cmake

  2. Build opencv with cmake

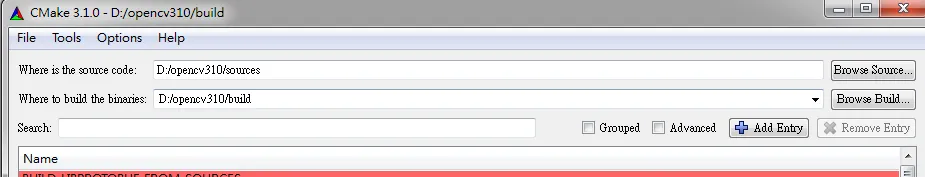

    Cmake configuration Cmake configuration
    • Press configure, choose visual studio 2015, finish
    • Then press generate

  3. Open OpenCV.sln under build/

  4. Build it using Debug, Release

    Right click > build Right click > build
    • right click > build
    • switch to Release mode and build again

  5. [Windows] Setting up environment variable

    • add <opencv>/bin into PATH

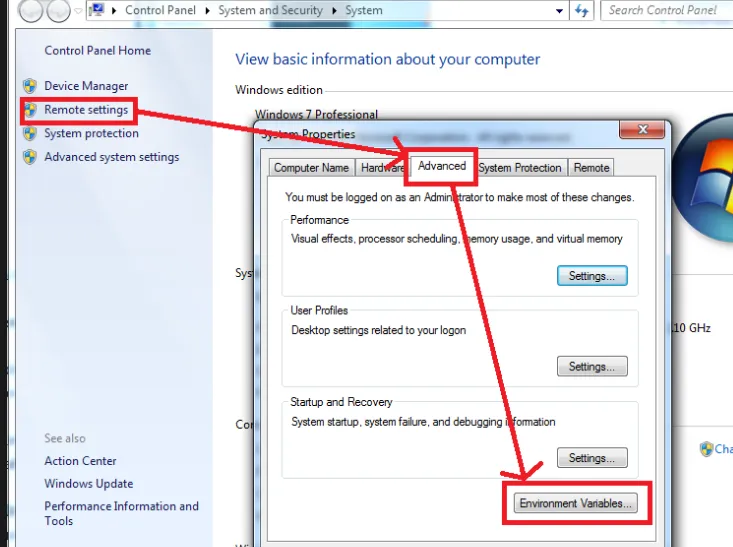

      Add new environment variable Add new environment variable
    • add new env named OpenCV_DIR, value as <opencv>/build
    • it may need logout to apply setting, you can check it by echo %PATH%, echo %OpenCV_DIR%

Build with EXTRA MODULES

  1. In step 2. Build opencv with cmake, press configure
  2. Set up OPENCV_EXTRA_MODULES_PATH to proper path(<opencv_contrib>/modules)

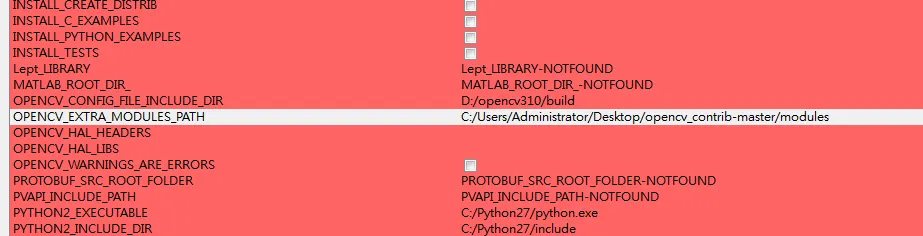

Set OPENCV_EXTRA_MODULES_PATH as opencv_contrib/modules Set OPENCV_EXTRA_MODULES_PATH as opencv_contrib/modules
  1. Press configure again, then generate

To see more details instructions, see opencv_contrib README

Travis.yml example

title: travis.yml
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
language:
  - cpp

sudo: required

compiler:
  - gcc

# building opencv is time consuming, caching it is better
cache:
    apt: true
    ccache: true
    directories:
        - opencv-3.1.0
        - opencv_contrib-3.1.0

install:

  # OpenCV dependencies - Details available at: http://docs.opencv.org/trunk/doc/tutorials/introduction/linux_install/linux_install.html
  - sudo apt-get install -y build-essential
  - sudo apt-get install -y cmake git libgtk2.0-dev pkg-config libavcodec-dev libavformat-dev libswscale-dev
  - sudo apt-get install -y python-dev python-numpy libtbb2 libtbb-dev libjpeg-dev libpng-dev libtiff-dev libjasper-dev libdc1394-22-dev

  # Download v3.1.0 .zip file and extract.
  - curl -sL https://github.com/Itseez/opencv/archive/3.1.0.zip > opencv.zip
  - unzip -n opencv.zip > log1

  # Download EXTRA MODULES and extract.
  - curl -sL https://github.com/Itseez/opencv_contrib/archive/3.1.0.zip > opencv_contrib.zip
  - unzip -n opencv_contrib.zip > log2

  # Create a new 'build' folder.
  - cd opencv-3.1.0
  - mkdir -p build
  - cd build

  # if Makefile is cached, then skip cmake opencv
  # Set build instructions for Ubuntu distro.
  - cat Makefile > l1 || cmake -D OPENCV_EXTRA_MODULES_PATH=../../opencv_contrib-3.1.0/modules CMAKE_BUILD_TYPE=RELEASE -D CMAKE_INSTALL_PREFIX=/usr/local -D WITH_TBB=ON -D BUILD_NEW_PYTHON_SUPPORT=ON -D WITH_V4L=ON -D INSTALL_C_EXAMPLES=ON -D INSTALL_PYTHON_EXAMPLES=ON -D BUILD_EXAMPLES=ON -D WITH_QT=ON -D WITH_OPENGL=ON ..

  # if Makefile is cached, then skip make opencv
  # Run 'make' with four threads.
  - cat Makefile > l2 ||make -j5 > make_log

  # Install to OS.
  - sudo make install

  # Add configuration to OpenCV to tell it where the library files are located on the file system (/usr/local/lib)
  - sudo sh -c 'echo "/usr/local/lib" > /etc/ld.so.conf.d/opencv.conf'

  - sudo ldconfig
  - echo "OpenCV installed."

  # We need to return to the repo "root" folder, so we can then 'cd' into the C++ project folder.
  - cd ../../
  - ls -al

script:
  - cmake CMakeLists.txt
  - make
  - "./a.out > log1.txt"
